P.C. Board Holder

Model PC502 $186.00

SPRING LOADED RAILS, FOR FAST LOADING OF CIRCUIT BOARDS
LOW PROFILE, COMFORTABLE WORK ANGLES
ADJUSTABLE HEIGHT TILT LEGS
ADJUSTABLE & REMOVABLE FOAM COVERS
SET RAILS ONLY ONCE FOR PRODUCTION

Maximum circuit board size 19.6" x 9.0".
Optional Rail assembly may be added for multiple circuit board assembly.

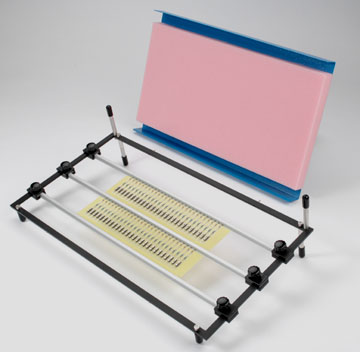

(shown with optional 3rd rail assembly)

The low profile design permits fast, comfortable loading and soldering of PC boards. The spring loaded rails provide a firm grip on each board. Once adjusted, board changing is fast. Adjustable legs allows the steel frame to be changed from a 1” low profile position to a 3” high sloping position. The legs are skid resistant. The cover is adjustable for component tension. Upon completion of component stuffing, the entire holder is flipped over for cutting and soldering. It rests on four non-skid bumpers.

P/N	Description	Price
PC502	P.C. Board Holder (Complete with 2 rails & Cover)	$186.00
PC502LC	P.C. Board Holder (Complete with 2 rails & no Cover)	$167.00
PC510	Optional- Extra 3rd Rail Assembly	$11.90
PC511	Standard Replacement Antistatic Foam	$14.90

This low profile circuit board holder has adjustable legs that allow the steel frame to be changed from
1" low profile position to 3" high sloping position for both soldering and component stuffing.


1 " Flat	2 " Tilt	3 " Tilt
